In this article, we'll be looking at the Hairstyle tab in detail to see how to create and edit custom items.
Table of Contents
- Creating New Hairstyle Custom Items
- Creating New Hair
- Editing Custom Hair
- Setting Hair Bounce
Creating New Hairstyle Custom Items
To create new custom items for hair, you will need to go to the category you wish to create hair for first. Once you select the desired category from the icons on the left, click (or tap, on the iPad) on the Custom tab, and then on the + button.
Now select the newly generated custom item, and click (or tap, on the iPad) on "Edit Hairstyle" on the top of the right panel to open the editor.
You can also edit existing preset items, just by doing the same thing.
Select the item you want to edit, and click (or tap, on the iPad) on "Edit Hairstyle" on the right panel.
Creating New Hair
There are two ways to create new hair:
- Drawing hair chunks with the Brush
- Generating procedural hair after setting hair count and shape
Drawing hair chunks with the Brush

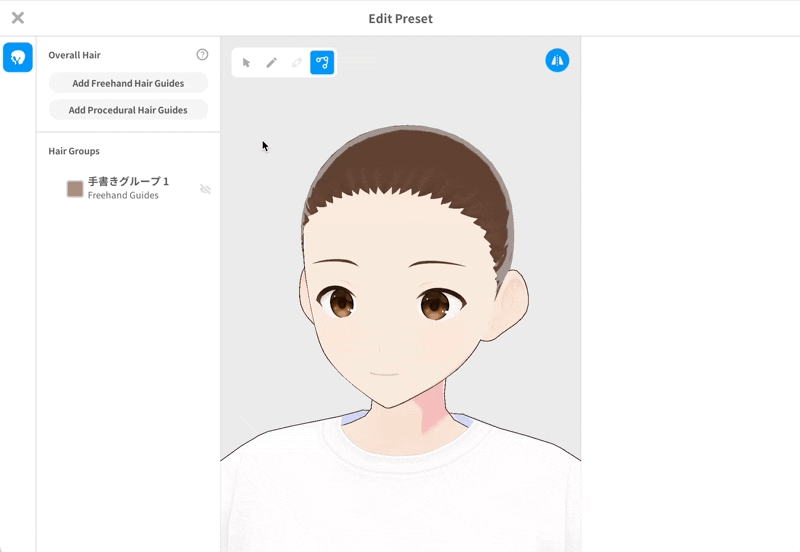

From the tools above the model, select the brush icon, and then select "Freehand Group 1" from the hair list on the left.
- The guidelines (grid) for hair will display, and you'll be able to draw new hair with brushstrokes along the grid. You can also adjust the shape of the guidelines by moving the green dots around.
- If you want to change the shape for a group of hair, you will need to use the Retouch Brush.
Select the hair group you want to edit, and then click on the Retouch Brush. Stroke again along the guidelines to see that hair change its shape and follow your brush.
- If you want to adjust the length, or maybe the point some hair fixes to the head, use Control Point.
- To create a new set of guidelines, click (or tap, on the iPad) on "Add Freehand Hair Guides".
Generating procedural hair after setting hair count and shape

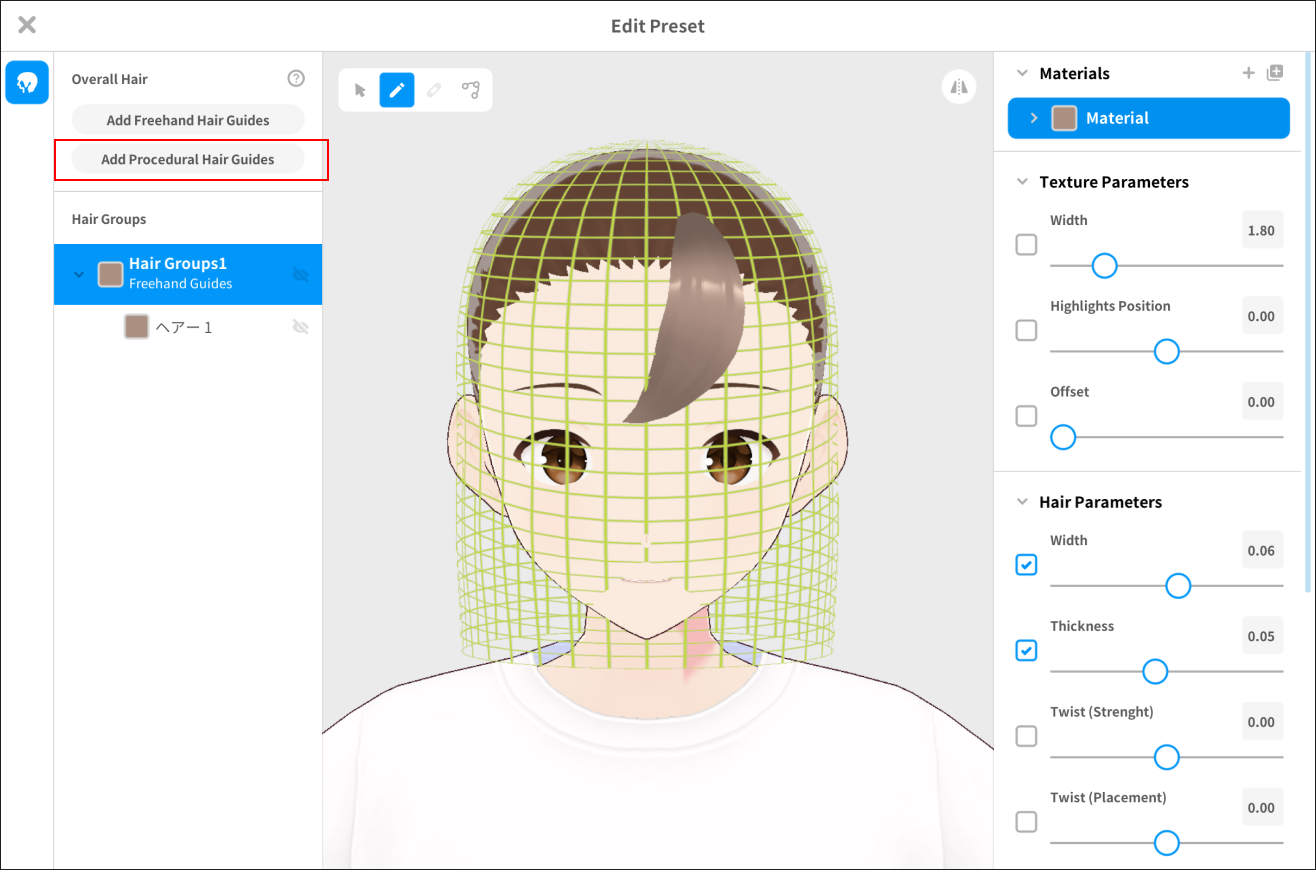

From the top left, click (or tap, on the iPad) on "Add Procedural Hair Guides".
- A new hair group will be displayed on the list on the left. Click on it for its parameters to display on the right of the screen. From here you can adjust hair count, cross-section, twist, and much more.
Editing Custom Hair
Adjusting the parameters
Hairstyle tab > Edit Hairstyle to open the editor like the one showing below.
Using the sliders on the right hand of the screen you can adjust various features, such as length, thickness, etc.
Hair color and texture are set by what we call Materials. Select a hair group on the left panel, and open the Materials menu on the right panel to see what you can edit.
The "Edit Texture" button in the Materials list will open the texture editor for those materials.
Here you can edit the design of the hair group, by playing around with colors and the balance of base and highlight textures to give a sense of three-dimensionality.
Setting Hair Bounce
Hairstyle tab > Edit Hair Bounce to open the editor like the one in the image below.
From this screen you can set the way hair bounces and sways as your model moves.
If you want to know more on how to set hair bounce, see the article below.
